Aeration

Process Solutions is the Official Representative of DCL in North and South Carolina

Aeration Bin Bottom- Aeration bin bottoms are used to promote consistent product withdrawal from large-diameter flat- or conical-bottom storage silos. It does this by passing low-pressure air through a porous membrane media and into the bed of the material being handled. The low-pressure air is then passed up through the material in the silo, giving it a highly fluid property.

More Information on options specific to your needs is available here

Aeration Conveyor (Air Slide)- This product gravity-conveys powders by passing low-pressure air through a porous membrane media and into the bed of the material being handled. The absence of moving parts, low power requirements, and capability to move a large variety of materials make Aeration Conveyors ideal for many applications.

More Information on options specific to your needs is available here

Aeration Lump Tray- Ideal for handling material with lumps or other potential foreign materials. The lump trap eliminates large lumps by creating a gravity air trap inline with an aeration conveyor. Product compatibility tests are availible for you to determine the optimum conveying angles and aeration volumes for your application.

More Information on options specific to your needs is available here

Aeration Trough- Aeration troughs are used to promote consistent product withdrawal from large-diameter flat- or conical-bottom storage silos. It works by passing low-pressure air through a porous membrane media and into the bed of the material being handled. A wide selection of troughs are availible and the minimal power and slope requirements make this an ideal solution to your product flow problems.

More Information on options specific to your needs is available here

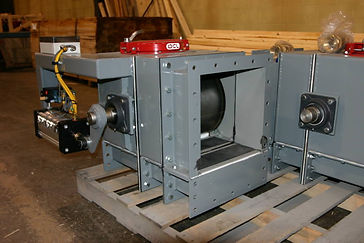

Aeration Rotary Throttle Valve- Rotary throttle valves offer you excellent control over material flow while air gravity (air slide) conveying.The valve uses a rotary parabolic blade that allows for a low-profile design delivering precise flow control. Precision positioning is availible through 4-20 mA positioning.

More Information on options specific to your needs is available here
